100% PP polypropylene PP strapping production line PP strapping
machine fully automatic PP strapping
Product Description of PP strapping production line:
PP strapping production line
The PP strapping tape production line is a professional equipment combination used to produce
polypropylene (PP) strapping belt. Through a series of continuous
process links, PP raw materials are converted into high-strength
and flexible strapping tape products. They are widely used in
logistics, packaging, building materials and other fields.
Raw materials-----100% polypropylene new or recycled material, or a mix.
Screw-----PP baling tape production line adopts special screw for extruder,
extruding uniformly.
Automatic screen changer------The 4-mesh recirculating large-area filter minimises the need for
frequent screen changes and ensures continuous, high-quality
production without interruption.
Line speed ----- PP baling belt production line adopts high speed operation, speed 200-300m/min.
Raw Materials:
--------100% PP granules (drawing grade)
EXTRUSION PARAMETERS TABEL
| Model | PP-2 | PP-4 | PP-6 | PP-8 | PP-10 | PP-12 |
| Raw material | PP polypropylene new material/recycled material |
| Number of tapes | 2 | 4 | 6 | 8 | 10 | 12 |
| Width(mm) | 5-19 | 5-19 | 5-19 | 5-19 | 5-19 | 5-19 |
| Thickness(mm) | 0.4-1.2 | 0.4-1.2 | 0.4-1.2 | 0.4-1.2 | 0.4-1.2 | 0.4-1.2 |
| Line speed(m/min) | ≧260-300 |
| PLC control system | PLC | PLC | PLC | PLC | PLC | PLC |
| Screw Model | 90 | 110 | 125 | 135 | 135 | 135 |
| Reducer model | 200 | 220 | 250 | 280 | 280 | 280 |
| Drying barrel (kg) | 100 | 150 | 200 | 200 | 200 | 200 |
| Winding machine | Automatic winding machine /Semi-automatic winding machine |
| Screen Changer | Automatic/Manua |
| Production capacity 24H | 2.5-3T | 6-7T | 8-9T | 10-11T | 12-13T | 13--14T |

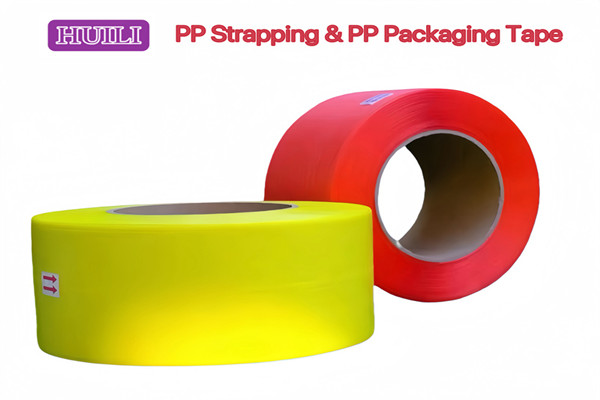

PP STRAPPING BELT:
The primary material of PP strapping belt (polypropylene strapping belt) is polypropylene
(PP), with minor additives added depending on performance requirements.
1. Primary Materials
PP:
- Comprising over 95% of the tape's raw material, it is the core raw material.
- Features: Lightweight, abrasion-resistant, corrosion-resistant,
high tensile strength, and low cost.
2. Common Additives
To enhance performance, the following additives may be added during
production:
PP fillers (such as calcium carbonate):
- Reduce costs and increase hardness and density, but excessive
amounts can affect flexibility.
- PP masterbatch**:
- Provides colors (commonly available in green, white, red, black,
blue, yellow, and transparent) for easy identification or labeling.
- Anti-aging agents**:
- Extend the tape's lifespan during outdoor use and prevent UV
degradation.
About winding machine:
PP strapping production equipment can be equipped with Automatic winding machine or semi-automatic winding machine.
The automatic winding machine has automatic working, automatic winding, automatic roll changing,
automatic stopping, and no need to replace transmission gears, belt slots, etc.
PLC key debugging, servo motor control, stable operation, more
convenient specification change, and more than 30% advance production efficiency.
PP strapping belt is suitable for baling machines:
Fully automatic strapping machine
Semi-automatic strapping machine
High-speed ultra-thin strapping machine
Handheld electric strapping machine
Manual strapping machine (iron buckle)
About th SERVICE:
We provide comprehensive technical support and service for our PP strapping tape production line, Our team of experienced technicians can provide a variety of
services, including:
Pre-sales:
1.Layout plan of PP strapping tape production line.
2.Analysis of the cost of PP strapping tape production line.
3.Raw materials that can be used for PP strapping tape production line.
After-sales service:
1.Water and electricity circuits of PP strapping production
equipment circuit drawings, etc.
2.Installation, commissioning and training of PP strapping tape production line.
3.Maintenance service of PP strapping tape production line.
4.Regular maintenance and repair
5.Troubleshooting and diagnosis
6.Software updates and upgrades
7.Spare parts and accessories
8.Training and technical advice
FAQ:
Q:What is the voltage of PP strapping tape production line?
A:380V/50HZ, we support customization
Q:What is the length of the PP strapping belt?
A: L:36 M.
Q:Where is the PP strapping tape production line?
A:We are from China.
Q:Can PP strapping tape production line provide after-sales service?
A:Yes, we have professional after-sales engineers who provide
24-hour online guidance.
Q:Is the quality of PP strapping tape production line?
A:We have 30 years of manufacturing experience, and have their own PP strapping tape production line plant, equipment quality is stable, the process is worth choosing.
Q:Does PP strapping tape production line customization?
A:We are a manufacturing plant that can customize model size,
extrusion capacity, voltage and so on according to customer
requirements.
Q:What does the wrapping machine part of the PP strapping tape production linelook like?
A:Equipped with automatic wrapping machine/semi-automatic wrapping machine.
